Запчасти для Makita DHW180
| # | Артикул | Название | Цена | Есть | |
|---|---|---|---|---|---|
| 1 | LX00000005 | TAPPING SCREW ST3X12 | — | ||
| 2 | LX00000069 | NAME PLATE RU | — | ||
| 3 | LX00000088 | HOUSING SET | 1 479 ₽ | ||
| 4 | LX00000008 | WIRE GROMMET 2 HOLES | — | ||
| 5 | LX00000009 | ROUND SEAL 2X200 | — | ||
| 6 | LX00000010 | WIRE GROMMET 4 HOLES | — | ||
| 7 | LX00000072 | OUTLET PIPE COMP. | — | ||
| 8 | LX00000011 | SILICONE RING 17 | 45 ₽ | ||
| 9 | LX00000012 | O-RING 15.5X2 | 9 ₽ | ||
| 10 | LX00000013 | U TYPE PIN 2.5X18.5 | 14 ₽ | ||
| 11 | LX00000014 | PUMP MOUNT PAD | — | ||
| 12 | LX00000015 | MOTOR & PUMP ASSY | 5 004 ₽ | ||
| 13 | LX00000014 | PUMP MOUNT PAD | — | ||
| 14 | LX00000018 | SWITCH | 223 ₽ | ||
| 15 | LX00000089 | CONTROLLER UNIT | — | ||
| 16 | LX00000020 | LEAD UNIT 18AWG 210MM RED | — | ||
| 17 | 644809-6 | Клемма для аккум. | 296 ₽ | ||
| 18 | LX00000021 | U TYPE PIN 2.5X11.5 | — | ||
| 19 | LX00000022 | VALVE | — | ||
| 20 | LX00000023 | CONICAL SPRING 7-9X20 INOX | 10 ₽ | ||
| 21 | LX00000073 | INLET VALVE SET | — | ||
| 22 | LX00000024 | O-RING 8.6X1.7 | 5 ₽ | ||
| 23 | LX00000025 | U TYPE PIN 2X16 | — | ||
| 24 | LX00000026 | INLET VALVE PLUG | — | ||
| 25 | LX00000027 | O-RING 12 | 5 ₽ | ||
| 26 | LX00000028 | O-RING 5.3 | 5 ₽ | ||
| 27 | LX00000029 | PLASTIC WASHER 6 | 23 ₽ | ||
| 28 | LX00000030 | COMPRESSION SPRING8.5X39 INOX | 15 ₽ | ||
| 29 | LX00000031 | INLET VALVE STEM | — | ||
| 30 | LX00000032 | O-RING 4.5 | 5 ₽ | ||
| 31 | LX00000033 | INLET VALVE BODY | — | ||
| 32 | LX00000034 | LINK ROD | — | ||
| 33 | LX00000035 | TRIGGER | 122 ₽ | ||
| 34 | LX00000036 | COMPRESSION SPRING7.5X25 INOX | 10 ₽ | ||
| 35 | LX00000037 | TRIGGER LOCK | — | ||
| 36 | LX00000038 | INDICATOR LAMP LENS | 24 ₽ | ||
| 37 | LX00000039 | LEAF SPRING INOX | 11 ₽ | ||
| 38 | LX00000040 | SPEED CHANGE LEVER | — | ||
| 39 | LX00000041 | SERIAL NUMBER LABEL | — | ||
| 40 | LX00000043 | BATTERY CASE SEAL RING | 112 ₽ | ||
| 41 | LX00000044 | BATTERY CASE LATCH | 24 ₽ | ||
| 42 | LX00000045 | CONICAL SPRING 5-10X6.3 INOX | 5 ₽ | ||
| 43 | LX00000046 | BATTERY CASE | 393 ₽ | ||
| 44 | LX00000047 | WARNING LABEL | — | ||
| 45 | LX00000049 | EXTENSION PIPE 350MM ASSY | — | ||
| 46 | LX00000076 | O-RING 9.5X2.65 | 5 ₽ | ||
| 47 | LX00000050 | 5 PATTERNS SPLAYER NOZZLE ASSY | — | ||
| 48 | LX00000077 | 5 PATTERNS SPLAYER NOZZLE | — | ||
| 49 | LX00000051 | COMPRESSION SPRING5.2X12 INOX | 10 ₽ | ||
| 50 | LX00000052 | STEEL BALL 7/32 | 23 ₽ | ||
| 51 | LX00000053 | O-RING 7.5X2.5 | 5 ₽ | ||
| 52 | LX00000078 | PLASTIC SLEEVE 6 | — | ||
| 53 | LX00000054 | O-RING 10.5X1.8 | 5 ₽ | ||
| 54 | LX00000055 | COMPRESSION SPRING 14X15 INOX | 10 ₽ | ||
| 55 | LX00000076 | O-RING 9.5X2.65 | 5 ₽ | ||
| 56 | LX00000056 | FILTER ASSY | 126 ₽ | ||
| 57 | LX00000079 | HOSE ASSY 8MMX6M(5/16X19.7FT) | — | ||
| 58 | LX00000057 | HOSE END CONNECTOR 8MM(5/16) | — | ||
| 59 | LX00000058 | HOSE BAND | — | ||
| 60 | LX00000059 | HOSE CLIP | — | ||
| 61 | LX00000060 | STRAINER ASSY | — |

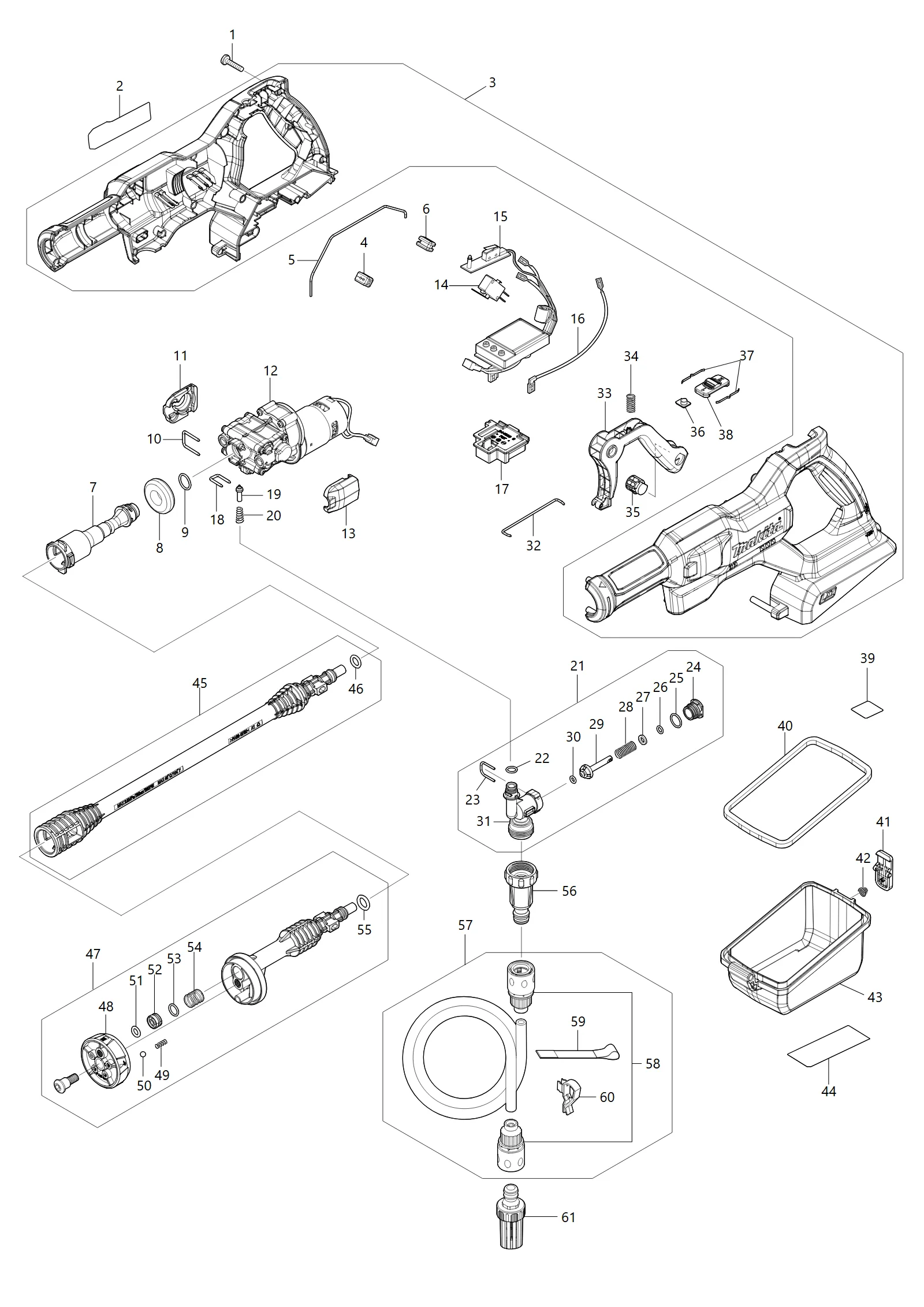

Инструмент Makita DHW180 относится к категории «Мойки». В каталоге представлено 1 взрыв-схема и 59 оригинальных деталей с артикулами производителя.
Наведите курсор на номер детали на схеме — она подсветится в таблице, и наоборот. Для заказа добавьте нужные позиции в корзину или свяжитесь с нами по телефону +7 (495) 215-02-99. Все запчасти оригинальные, цены и наличие актуальны.
